Evromedia USB Full Hybrid Full HD

A Hybrid TV tuner from EvroMedia.

Overview/Features

  • Analog TV
  • DVB-T/T2
  • Remote Control
  • Connection via Composite/S-Video 2-in-1 Cable

Tuner

Specifications

Features Description
Interface USB 2.0
Standards DVB-T/T2/C and Analog
Inputs Composite, S-Video
Size 102mm * 30mm * 16mm

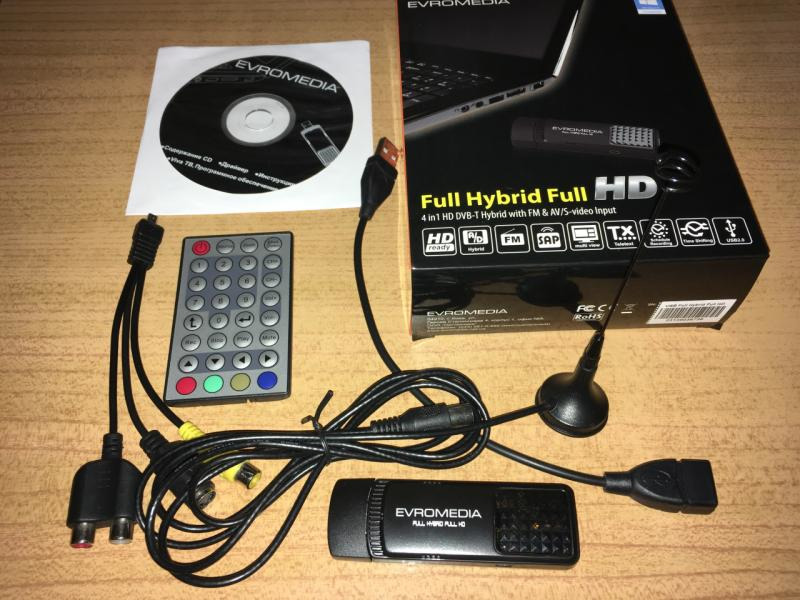

Package Included

  • Evromedia USB Full Hybrid Full HD tuner
  • Quick Installation Guide
  • Installation CD
  • Remote control
  • Antenna
  • Composite, S-Video 2 in 1 cable
  • USB cable

Evromedia USB Full Hybrid Full HD content

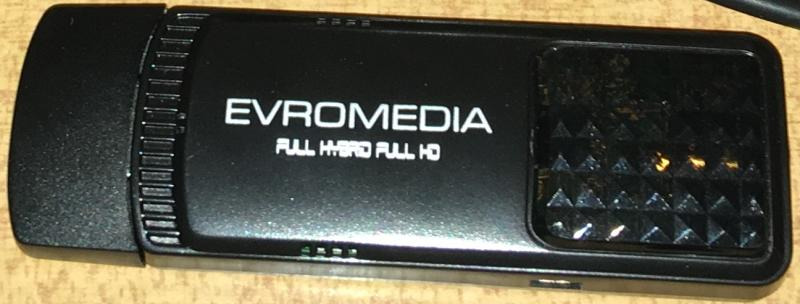

Hardware

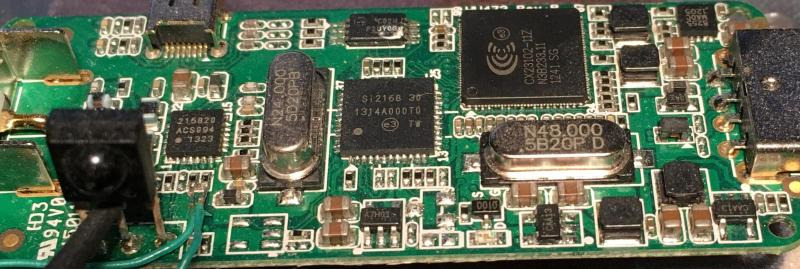

Top side

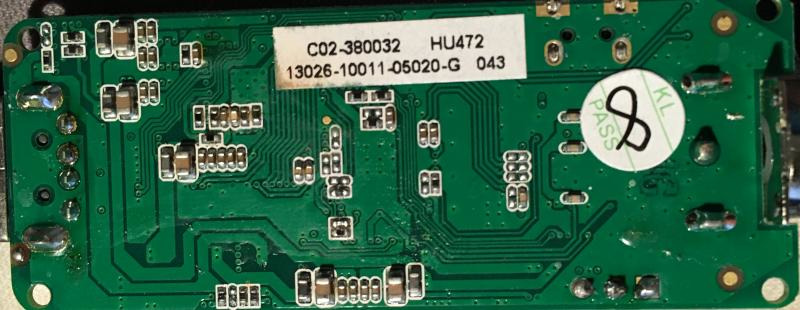

Bottom side

Components Used

Identification

lsusb

Output of lsusb:

Bus 003 Device 002: ID 1b80:d3b2 Afatech


i2cdetect

Output of i2cdetect -l

i2c-13  i2c             cx231xx #0-0                            I2C adapter
i2c-14  i2c             cx231xx #0-1                            I2C adapter
i2c-15  i2c             cx231xx #0-2                            I2C adapter


Output from cx231xx #0-0 by i2cdetect -y -a 13

     0  1  2  3  4  5  6  7  8  9  a  b  c  d  e  f
00: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
10: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
20: 20 -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
30: 30 -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
40: -- -- -- -- 44 -- -- -- -- -- -- -- 4c -- -- --
50: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
60: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
70: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --


Output from cx231xx #0-1 by i2cdetect -y -a 14

     0  1  2  3  4  5  6  7  8  9  a  b  c  d  e  f
00: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
10: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
20: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
30: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
40: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
50: 50 -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
60: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
70: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --


Output from cx231xx #0-2 by i2cdetect -y -a 15

     0  1  2  3  4  5  6  7  8  9  a  b  c  d  e  f
00: 00 -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
10: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
20: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
30: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
40: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
50: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
60: 60 -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
70: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --


EEPROM content on address 0x50

00000000: aa aa aa aa aa aa aa 16 03 30 00 30 00 30 00 30  .........0.0.0.0
00000010: 00 30 00 30 00 30 00 30 00 30 00 30 00 ff ff ff  .0.0.0.0.0.0....
00000020: ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff  ................
00000030: ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff  ................
00000040: ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff  ................
00000050: ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff  ................
00000060: ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff  ................
00000070: ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff  ................
00000080: ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff  ................
00000090: ff ff ff ff ff ff ff 80 1b b2 d3 fa fa fa 01 10  ................
000000a0: 00 40 00 70 00 aa aa 2a 03 43 00 6f 00 6e 00 65  [email protected]...*.C.o.n.e
000000b0: 00 78 00 61 00 6e 00 74 00 20 00 43 00 6f 00 72  .x.a.n.t. .C.o.r
000000c0: 00 70 00 6f 00 72 00 61 00 74 00 69 00 6f 00 6e  .p.o.r.a.t.i.o.n
000000d0: 00 55 55 55 55 55 55 26 03 50 00 6f 00 6c 00 61  .UUUUUU&.P.o.l.a
000000e0: 00 72 00 69 00 73 00 20 00 41 00 56 00 20 00 43  .r.i.s. .A.V. .C
000000f0: 00 61 00 70 00 74 00 75 00 72 00 65 00 aa aa aa  .a.p.t.u.r.e....


Usage

dmesg

usb 3-1: new high-speed USB device number 3 using ehci-pci
usb 3-1: New USB device found, idVendor=1b80, idProduct=d3b2
usb 3-1: New USB device strings: Mfr=1, Product=2, SerialNumber=3
usb 3-1: Product: Polaris AV Capture
usb 3-1: Manufacturer: Conexant Corporation
usb 3-1: SerialNumber: 0000000000
cx231xx 3-1:1.1: New device Conexant Corporation Polaris AV Capture @ 480 Mbps (1b80:d3b2) with 7 interfaces
cx231xx 3-1:1.1: Identified as Evromedia USB Full Hybrid Full HD (card=23)
i2c i2c-6: Added multiplexed i2c bus 8
i2c i2c-6: Added multiplexed i2c bus 9
cx231xx 3-1:1.1: v4l2 driver version 0.0.3
cx231xx 3-1:1.1: Unknown tuner type configuring SIF
cx231xx 3-1:1.1: Registered video device video1 [v4l2]
cx231xx 3-1:1.1: Registered VBI device vbi0
cx231xx 3-1:1.1: audio EndPoint Addr 0x83, Alternate settings: 3
i2c i2c-9: Added multiplexed i2c bus 10
si2168 9-0064: Silicon Labs Si2168-A30 successfully identified
si2168 9-0064: firmware version: A 3.0.2
si2157 7-0060: Silicon Labs Si2147/2148/2157/2158 successfully attached
dvbdev: DVB: registering new adapter (cx231xx #0)
cx231xx 3-1:1.1: DVB: registering adapter 0 frontend 0 (Silicon Labs Si2168)...
cx231xx 3-1:1.1: Successfully loaded cx231xx-dvb
cx231xx 3-1:1.1: video EndPoint Addr 0x84, Alternate settings: 5
cx231xx 3-1:1.1: VBI EndPoint Addr 0x85, Alternate settings: 2
cx231xx 3-1:1.1: sliced CC EndPoint Addr 0x86, Alternate settings: 2
cx231xx 3-1:1.1: TS EndPoint Addr 0x81, Alternate settings: 6
si2168 9-0064: downloading firmware from file 'dvb-demod-si2168-a30-01.fw'
si2168 9-0064: firmware version: A 3.0.19
si2157 7-0060: found a 'Silicon Labs Si2158-A20'
si2157 7-0060: downloading firmware from file 'dvb-tuner-si2158-a20-01.fw'
si2157 7-0060: firmware version: 2.1.9


dvb-fe-tool -v

Device Silicon Labs Si2168 (/dev/dvb/adapter0/frontend0) capabilities:
     CAN_2G_MODULATION
     CAN_FEC_1_2
     CAN_FEC_2_3
     CAN_FEC_3_4
     CAN_FEC_5_6
     CAN_FEC_7_8
     CAN_FEC_AUTO
     CAN_GUARD_INTERVAL_AUTO
     CAN_HIERARCHY_AUTO
     CAN_INVERSION_AUTO
     CAN_MULTISTREAM
     CAN_MUTE_TS
     CAN_QAM_16
     CAN_QAM_32
     CAN_QAM_64
     CAN_QAM_128
     CAN_QAM_256
     CAN_QAM_AUTO
     CAN_QPSK
     CAN_TRANSMISSION_MODE_AUTO
DVB API Version 5.11, Current v5 delivery system: DVBT
Supported delivery systems:
    [DVBT]
     DVBT2
     DVBC/ANNEX_A
Frequency range for the current standard:
From:            48,0 MHz
To:               870 MHz
Step:            62,5 kHz


Software

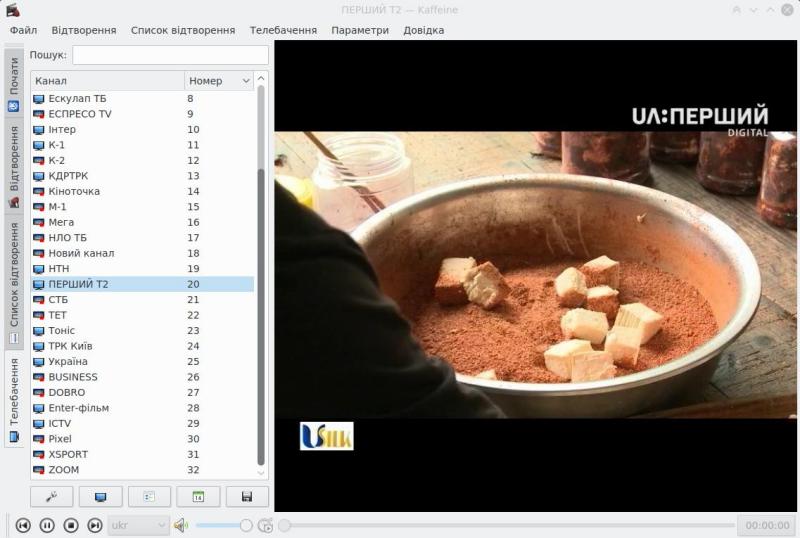

Main window

Channel Setup

External Links

Patches for Linux Kernel:
